Activated Carbon Filter Making Machines Smoking Filter Activated Carbon

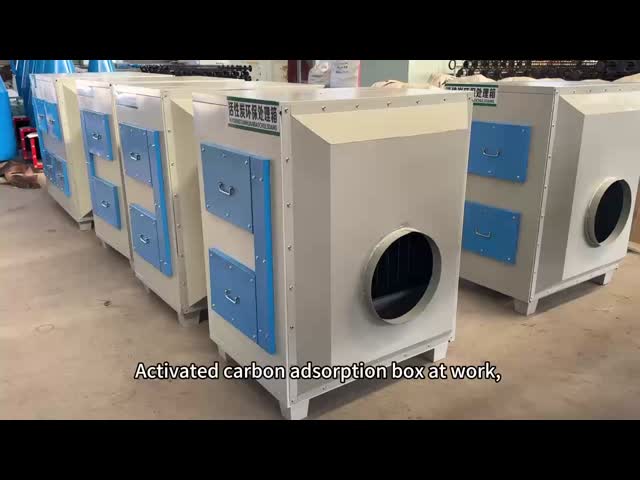

Activated carbon exhaust gas treatment tank is a commonly used equipment for air purification and exhaust gas treatment, which is widely used in industry, commerce and some special places (e.g., chemical plants, pharmaceutical plants, paint spraying rooms, etc.). Its main function is to purify the air by adsorbing harmful gases, odors and volatile organic compounds (VOCs) to ensure that the emissions meet environmental standards. Below are a few key features of the activated carbon exhaust gas treatment chamber:
1. Working principle
The activated carbon exhaust gas treatment box mainly relies on the adsorption effect of activated carbon to purify the exhaust gas. Activated carbon has a high specific surface area and rich microporous structure, which can effectively adsorb harmful gases in the air, such as benzene, toluene, xylene, ammonia and other volatile organic compounds. After the exhaust gas enters the treatment box, the pollutants are adsorbed onto the surface of the activated carbon through the process of contact with the activated carbon, and the purified air is discharged.
2. Application
Activated carbon exhaust gas treatment tanks are suitable for a variety of occasions containing odourous gases, volatile organic compounds (VOCs) or other harmful gases, common application areas include:
(1) Chemical industry: to deal with toxic gases produced by solvent volatilisation and chemical reactions.
(2) Paint spraying industry: removing harmful components and solvent gases from paints.
(3) Pharmaceutical industry: removing odours and harmful gases generated during the production process.
(4) Food processing: Remove odours that may be generated and keep the air fresh.
(5) Indoor air purification: e.g. air purification in offices, homes or commercial spaces.
3. Specification
| Air Volume(m3/h) | Thickness(mm) | The Number of Drawer | The Number of Activated Carbon | Dimension(mm) | The Size of Air Inlet/Outlet (mm) |
| 5000 | 0.6 | 2 | 80 | 1050*1000*1320 | 400 |
| 10000 | 0.6 | 4 | 160 | 1700*1000*1320 | 500 |
| 15000 | 0.8 | 6 | 240 | 1700*1000*1320 | 500 |
| 15000 | 0.8 | 6 | 240 | 2100*1000*1320 | 500 |
| 20000 | 1.0 | 9 | 360 | 2100*1000*1320 | 600 |
| 20000 | 1.0 | 8 | 320 | 2700*1000*1320 | 600 |
| 25000 | 1.2 | 10 | 400 | 2900*1000*1320 | 600 |
| 30000 | 1.2 | 12 | 480 | 3000*1000*1320 | 800 |
| 40000 | 1.5 | 12 | 672 | 3000*1400*1320 | 800 |
| 50000 | 1.5 | 16 | 896 | 3000*1400*1500 | 800 |
4. FAQ
Q: Are you a trading company or a manufacturer?
A: We are a manufacturing company. We are a professional manufacturer of dust removal and conveying equipment with more than 20 years of production.
Q: Where is your factory located?
A: The factory is located in Hebei, China, 50 minutes by rail from Beijing.
Q: Do you offer OEM services?
A: Yes. Any required logo is available.
Q: What is the production capacity of your company?
A: Our factory covers an area of more than 20,000 square meters and produces 2,000 machines a year.
Q: What certificates do you have?
A: ISO / SGS
